Online Ordering Delivery V3

Delivery Flow Overview
- High level Sequence diagram
- Delivery Order Placement
Models
Methods
- Retrieve Delivery Settings
- Retrieve Delivery Quotes

Delivery Flow Overview

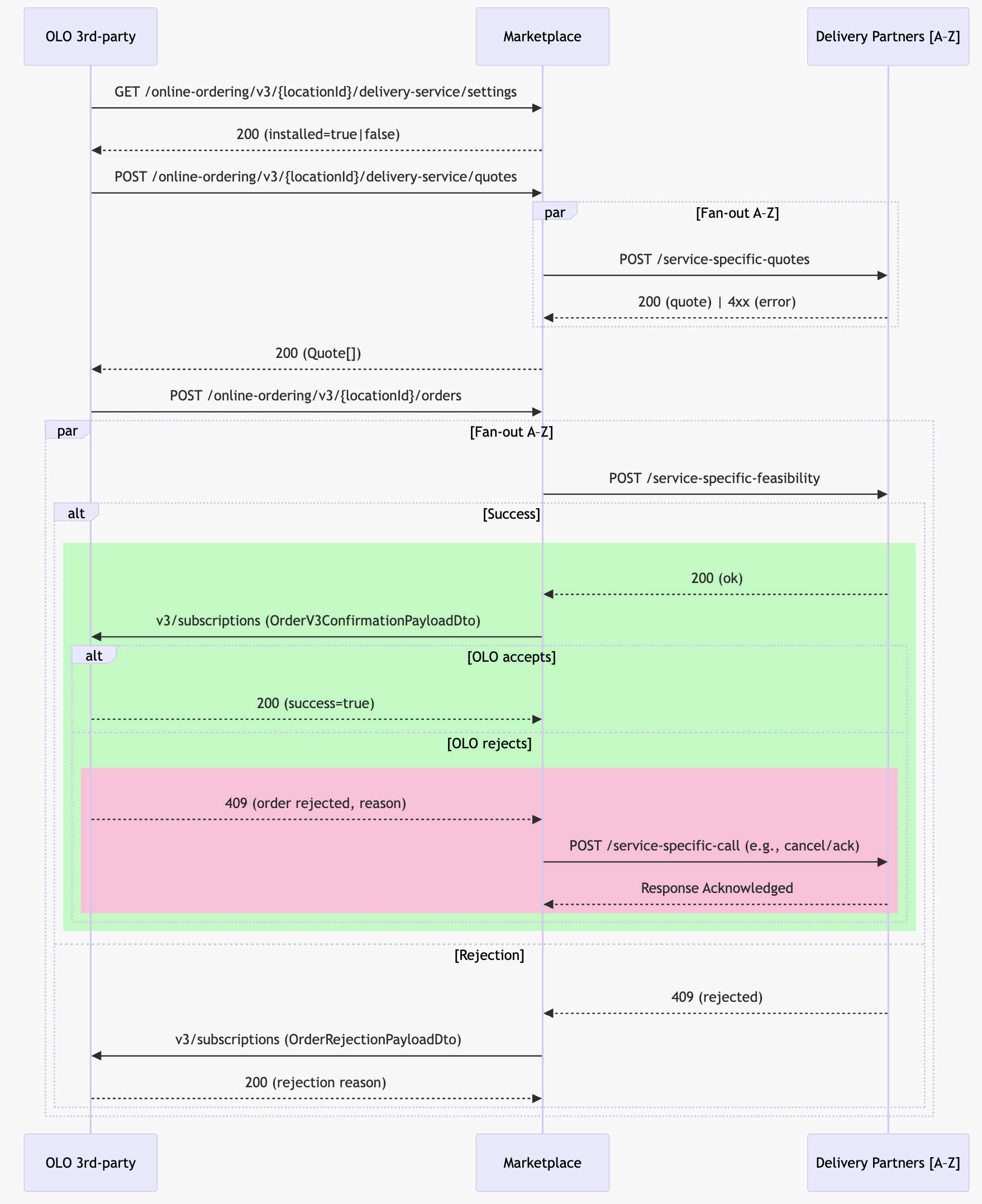

High level Sequence diagram

Delivery Order Placement

Prerequisites:

Delivery Service Provider is installed for the location. E.g., DoorDash Drive, Inhouse Delivery.

Delivery Order is placed as other orders with

POST /online-ordering/v3/{locationId}/orders

Full order structure is available in Order V3. For delivery orders pickupInfo, dineInInfo, curbsideInfo fields should be null.

Essential fields for Delivery Order Placement:

{
  ...,
  "fulfillmentType": "DELIVERY",
  "expectedAt": "<expected-food-delivery-time>",
  "deliveryInfo": {
    "deliveryType": "DELIVERY_SERVICE|SELF_DELIVERY",
    "isContactless": false,
    "address": Address,
    "instructions": null,
    "contactInfo": ContactInfo,
    "deliveryService": {
      "deliveryQuoteRef": "crn:310ddc51-5256-44b0-a08b-a239d4a301cc:dqt_SPR-sYE7xc0f4883",
      "expectedPickupAt": "<expected-food-pickup-time>"
    }
  },
}

Get enabled Delivery Services for a location

GET /online-ordering/v3/{locationId}/deliveries/settings

Response 200 - Returns an array of objects DeliveryServiceSettings with enabled delivery services for the location

{
  "deliveryServices": [
    {
      "name": "Doordash Drive",
      "ref": "310ddc51-5256-44b0-a08b-a239d4a301cc"
    },
    {
      "name": "InhouseDelivery",
      "ref": "0b2d5658-3cdf-44c0-9fe6-5111d9bf5def"
    }
  ]
}

How to lookup for the delivery quotes and estimate?

POST /online-ordering/v3/{locationId}/deliveries/quotes

Request - Required body

{
  "dropoff_address":{
    "city":"San Francisco",
    "state":"California",
    "street":"901 Market Street",
    "unit":"Suite #600",
    "zip_code":"94105"
  },
  "delivery_time":"2018-08-22T17:21:28", //If deferred order
  "pickup_time":"2018-08-22T17:20:28", //If ASAP order
}

Response 412 - if there are no eligible “DELIVERY_SERVICE” for this location

Response 200 - Request was successfully accepted

{
  "statistics": [
    {"provider": "doordash", "status": "200|400|500"},
    {"provider": "ihd", "status": "200|400|500"},
  ],
  "quotes": [
    {
      "ref": "crn:310ddc51-5256-44b0-a08b-a239d4a301cc:dqt_SPR-sYE7xc0f4883",
      "fee": 700,
      "currency": "USD",
      "dropoff_eta": "2022-02-25 01:30:39",
      "pickup_eta": "2022-02-25 01:07:10"
    }
  ]
}

Models

DeliveryServiceSettings

Name	Type	Description
name	string	Name of the delivery provider (e.g., `Doordash Drive`).
ref	string	Unique reference identifier for the quote (UUID format).

QuoteRequest

Name	Type	Description
hasAgeRestrictedItems	boolean	Indicates whether the order contains items with age restrictions (e.g., alcohol).
deliveryAddress.city	string	City of the delivery address.
deliveryAddress.state	string	State or region of the delivery address.
deliveryAddress.line1	string	Primary street address line.
deliveryAddress.line2	string	Secondary street address line (e.g., apartment, suite, floor).
deliveryAddress.postalCode	string	Postal or ZIP code of the delivery address.
deliveryAddress.instructions	string or null	Special delivery instructions for the driver (optional).
expectedDeliveryAt	string or null	Expected delivery date and time in ISO 8601 format (can be `null` if not set).
expectedPickupAt	string	Expected pickup date and time in ISO 8601 format.

Quote

Name	Type	Description
ref	string	Unique reference identifier in the format `crn:[conecto-app-guid]:[3rd-party-external-identifier]`.
fee	integer	The service or delivery fee amount associated with the quote.
currency	string	Currency code in ISO format (e.g., `USD`).
estimatedDeliveryAt	string (ISO 8601 datetime)	Estimated date and time when the order will be delivered.
estimatedPickupAt	string (ISO 8601 datetime)	Estimated date and time when the order will be ready for pickup.

Retrieve Delivery Settings

Returns a Location Delivery configuration.

GET /online-ordering/v3/{locationId}/delivery-service/settings

Response 200

Returns a list of available delivery services for the requested location.

{
    "deliveryServices": [
        {
            "name": "string",
            "id": "string"
        }
    ]
}

Retrieve Delivery Quotes

Returns a list of Delivery Quotes for the requested location.

POST /online-ordering/v3/{locationId}/delivery-service/quotes

Request Body (required)

Content-Type: application/json

{
    "hasAgeRestrictedItems": "boolean",
    "deliveryAddress": {
        "city": "San Francisco",
        "state": "CA",
        "line1": "901 Market Street",
        "line2": "Suite #600",
        "postalCode": "94105",
        "instructions": "string | null"
    },
    "expectedDeliveryAt": null,
    "expectedPickupAt": "2022-02-25T01:07:10Z"
}
